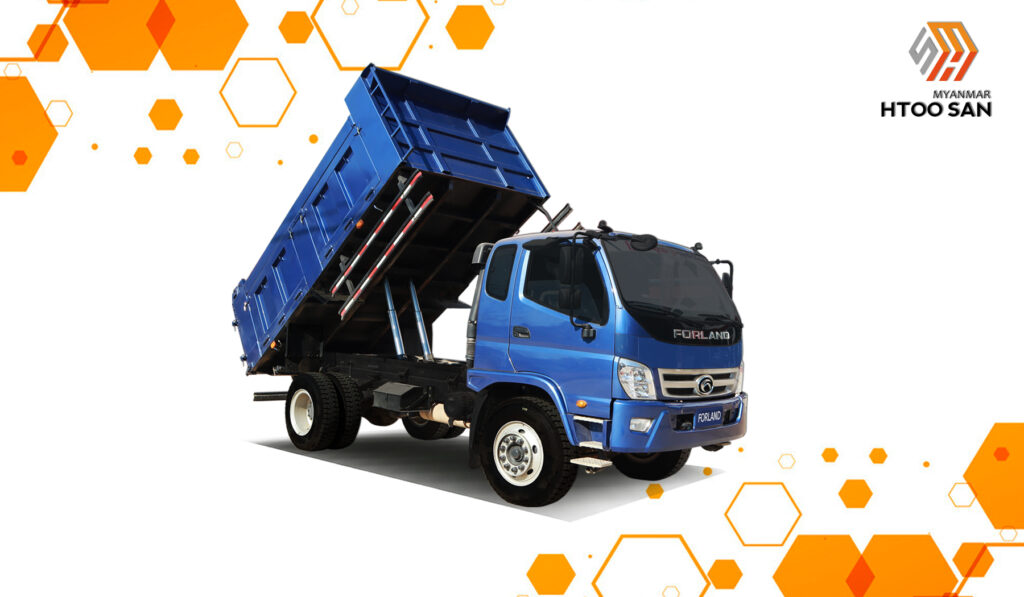

FORLAND M3 4108-12T(H2)
| Specification of Forland M3 4108-12T(H2) | ||
|---|---|---|
| Engine | Engine model | YC4D130-33 |
| Rated power of engine (kw/rpm) | 96/2800 | |
| Maximum torque (N.m/rpm) | 380/（1600~1900） | |
| Engine displacement (L) | 4.214 | |
| Gear Box | Transmission mode | Manual Front-6/Rear-1 |
| Chassis Rated Parameters | Tyre Size/number | 9.00R20/6+1 |
| Steering Type | Power steering (Left Hand Side) | |
| Brake Type | Drum type, air pressure braking | |
| Weight parameter | Curb weight (Kg) | 7410 |
| Rated load capacity (Kg) | 5500 | |
| Dimension parameters | Overall dimensions (LxWxH)mm | 6592×2400×2905 |
| Internal cargo body dimensions (LxWxH)mm | 4200×2170×(1000+200) | |
| Rated voltage (V) | 24 | |
| Fuel | Fuel Type | Diesel |
| Capacity of the fuel tank (L) | 140 | |
| Others – Air Con , Power window , Digital alarm sensor , Air dryer. | ||
